商品の詳細:
|
| 環境への影響: | 環境に優しい、化学薬品不使用 | 塗装色: | ホワイト、シングルコート |
|---|---|---|---|
| SafeLights: | 黄色灯 | 接着剤色: | 白 |
| 露光エネルギー: | 110-130mj/Cm | スキル要件: | サーマルCTP装置 |
| プレートタイプ: | CTP プレート 処理 さ れ ない | 有効期間: | 20か月 |

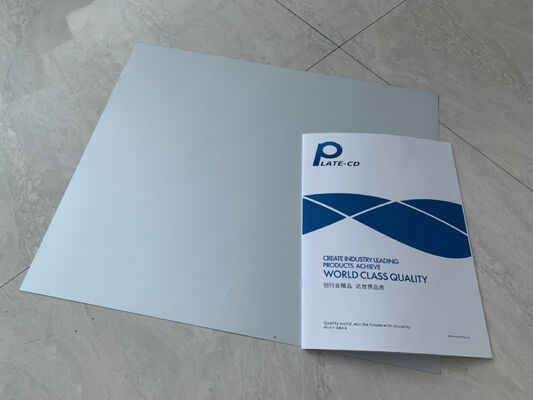

The CD-RM Processless Printing Plates represent a revolutionary advancement in printing technology, offering a complete Print without Plates Solution that eliminates traditional chemical processing. This innovative approach reduces environmental impact while enhancing operational efficiency and print quality for modern printing businesses.
Designed with yellow safelight compatibility, these plates maintain integrity during handling and preparation. The precisely calibrated exposure energy range of 110-130 mj/cm² ensures optimal sensitivity and durability, while the rapid 22-25 second output time significantly increases production throughput.
Featuring a distinctive white glue color for superior adhesion and stability, these plates provide consistent performance throughout printing runs. The processless nature minimizes chemical usage, reduces waste, and enhances workplace safety, making them an environmentally responsible choice aligned with global sustainability goals.
| Parameter | Specification |
|---|---|
| Glue Color | White |
| Plate Model | CD-RM |
| Output Time | 22-25 Seconds |
| Coating Color | White, Single Coat |
| Equipment Requirement | Thermal CTP Machine |
| Exposure Energy | 110-130 mj/cm² |
| Validity Period | 20 Months |
| Time of Exposure | 22-28 Seconds |
| Safelights | Yellow Lights |
| Primary Usage | Paper Printing |
The PLATE-CD CD-RM Processless Printing Plates are engineered for high-volume paper printing applications, offering substantial supply capacity of 10,000,000 square meters monthly. With a minimum order quantity of 3000 square meters and 10-working-day delivery, these plates support demanding production schedules.
Ideal for commercial printers, publishing houses, and packaging companies, this solution eliminates chemical processing while maintaining exceptional print quality. Flexible packaging options accommodate different thickness requirements: 0.15mm plates (100 sheets/box) and 0.30mm plates (50 sheets/box).
The technology supports businesses prioritizing efficiency, sustainability, and cost-effectiveness, with negotiable pricing and TT payment terms facilitating smooth procurement for large-scale operations.
The brand name is PLATE-CD and the model number is CD-RM.
They are manufactured in Henan.
The minimum order quantity is 3000 square meters.

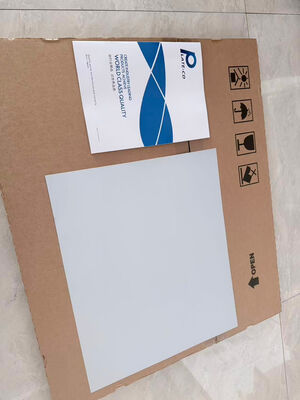

0.15mm thickness plates come in boxes of 100 sheets, and 0.30mm thickness plates come in boxes of 50 sheets.
Delivery time is 10 working days with payment terms via TT (Telegraphic Transfer).
